TACZ5035

600TVL video resolution
Low operating current, operates on 5V
Compatible with Tactic 5.8GHz FPV gear for easy setup
Can be mounted to drones, RC vehicles or airplanes
Mounts easily with double-sided tape, hook and loop material or pre-
fabricated brackets (not included)
One year limited warranty through Hobby services beginning at date of
purchase

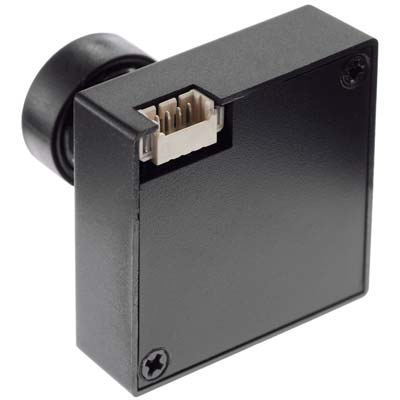

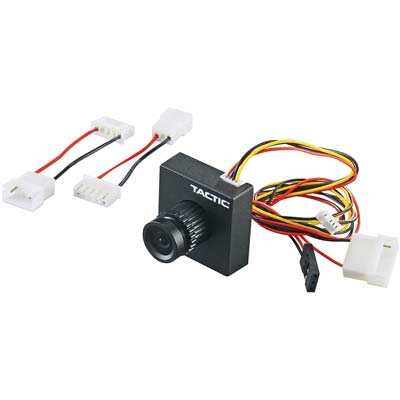

FPV-C2 Camera with Input Connector
Input PowerVideo Camera
2S and 3S4S LiPo Battery Adapters
Instruction Sheet

Video Transmitter such as the Tactic
FPV-T1
FPV-T2
FPV-T6
Receiver and Monitor such as the Tactic
FPV-RM1, TACZ5150
FPV-RM2, TACZ5152
Mounting Tape

Video Resolution: 600TVL
Field of View: 100
Color Encoding: NTSC (720H x 480V) PAL (720 x 576)
Video Out: 1.0Vp-p, 30 ohms (NTSC), 75 ohms (PAL)
Input Power: 5V DC
Sensor: 14 (6.3mm) CMOS
Camera Lens: 0.1 (2.3mm)
Dimensions: 1.2 x 1.2 x 1.1 in (30 x 30 x 28 mm)
Weight: 0.36oz (10.3g)
