HHB1201071

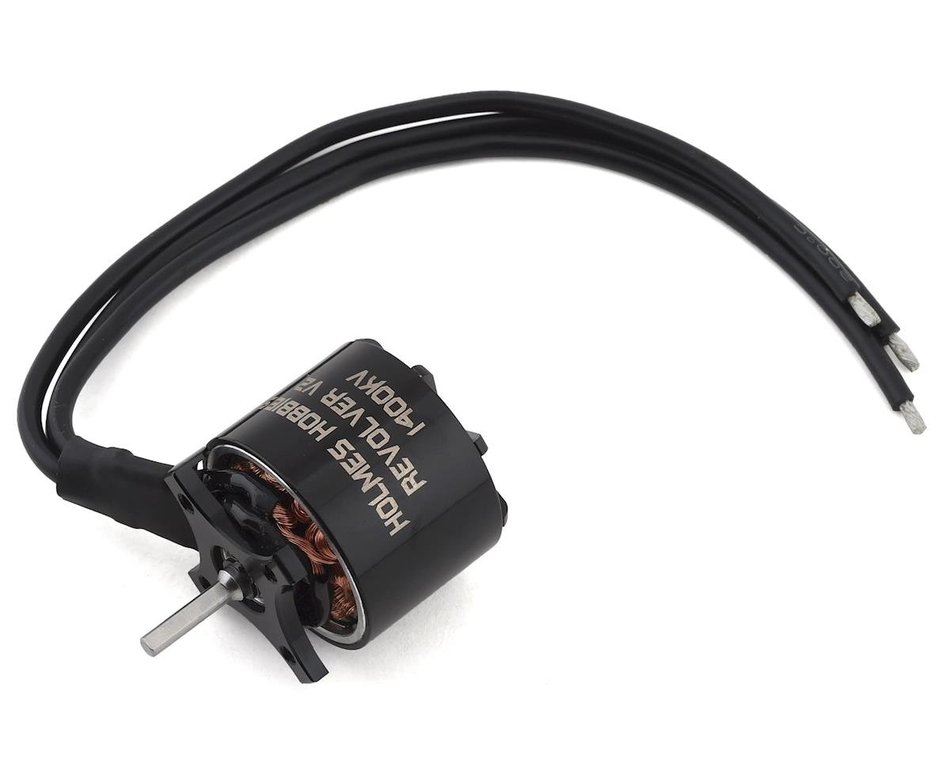

This is a Holmes Hobbies Revolver V2 540 Sensorless Brushless Outrunner Motor, a small and light weight motor that doesn't sacrifice torque. The Revolver 540 is an extremely torque dense and lightweight choice with exceptional startup and feel that rivals brushed motors. The 540 model is two times more powerful than the "Snubnose 540" model, and provides an unmatched torque-dense driving sensation similar to a diesel engine.

Features:

Bolts up to standard "540" mount

Small and light, yet higher torque than 540 brushed motors

1/8" shaft fits common R/C pinions

200mm 14ga silicon motor leads (does not include bullets)

Specifications:

Motor: Brushless DC Outrunner

Stator: 14 pole 12 slot

Voltage: 2-3S LiPo

1/8" D shaft output (standard 540)

Mounting Pattern: 25mm for M3 screws (standard 540)

Weight: 143g w/ wires

Diameter: 35mm

Length: 36.8mm

Stator: 28x20mm
