TRA85086-4

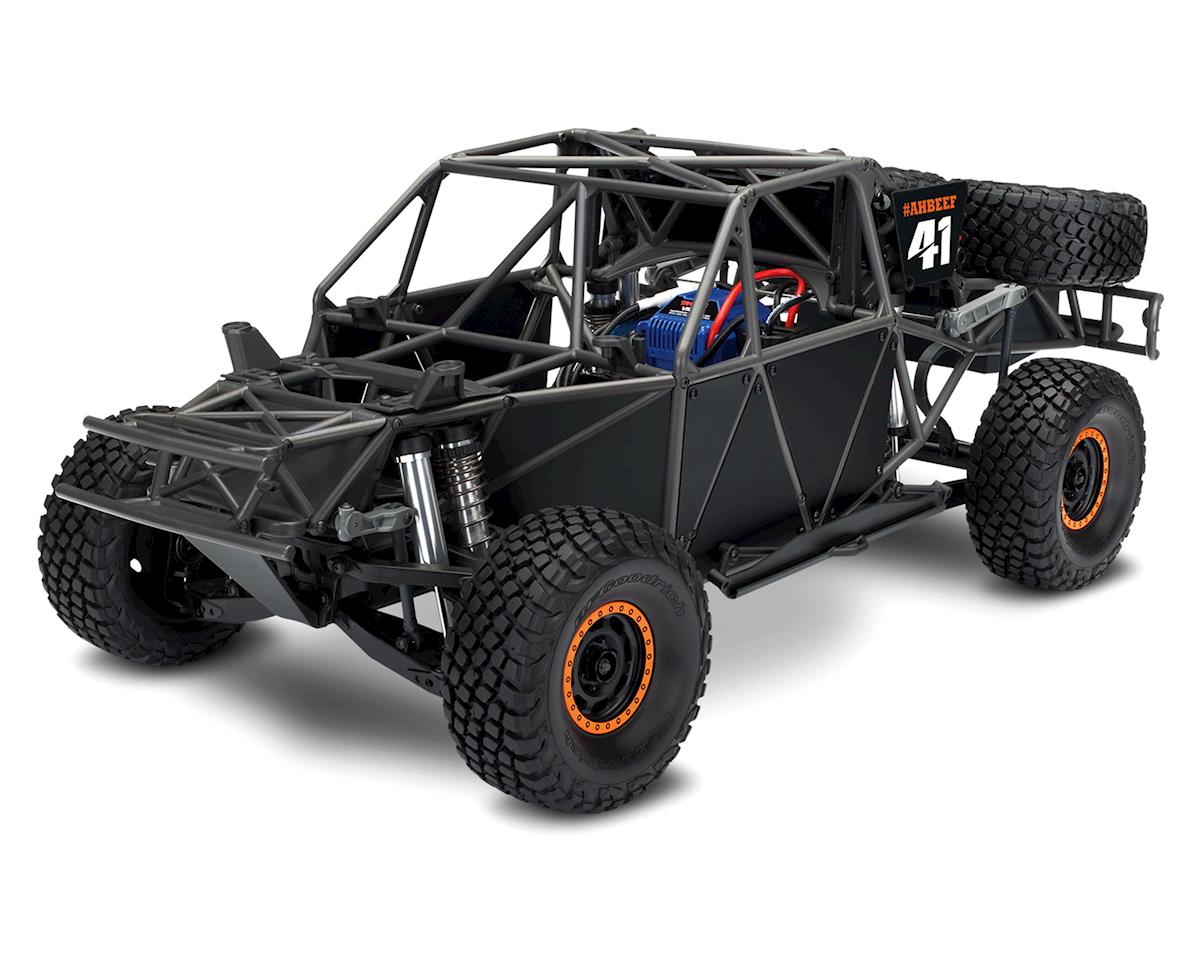

This is the Traxxas Unlimited Desert Racer "Rigid Industries" Style UDR 6S RTR 4WD Electric Race Truck, along with TQi 2.4GHz Radio & LED Lights is Race Truck is a true to scale 4-wheel drive desert race truck. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function. Attention to detail captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.

The performance of this versatile race truck is now complemented by a high-intensity light from the rugged waterproof LED lighting system. A high-voltage amplifier powers 204 individual LEDs for brilliant light while tightly regulating the voltage to eliminate flickering and dimming. The rear light bar features class lights and smart brake lights that work when brakes are applied in either direction.

 Features:

VXL-6s™ Waterproof Electronic Speed Control

6s LiPo compatible

Integrated cooling fan

Real-time telemetry via Traxxas Link

Machined heat sink

3-LED status indicators

Powered accessory ports

10-gauge silicone wire

Velineon® 2200kV Brushless Motor

4-pole 2200kV brushless motor

5mm output shaft

Finned can for better heat dissipation

Up to 50+ mph with Two 3s LiPo Batteries

Traxxas Stability Management® (TSM)

Improves straight line acceleration and braking on low-traction surfaces

Maintains steering composure to allow throttle-on powerslides

Never dulls throttle or slows the truck

Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio System

TQi 2-channel transmitter

Automatically stores and loads settings for up to 30 Traxxas Link enabled models

Programmable multi-function knob

Adjustable steering and throttle percentage (dual rates)

Adjustable steering and throttle sensitivity (exponential)

Adjustable steering and throttle end points

High 13ms frame rate and near-zero latency for responsive control

5-channel micro receiver (#6533) with fail-safe security

Patented waterproof receiver box with easy-access plug

Large Pro-Scale™ Body with Highly Detailed Replica Parts

Heavy-duty truck body mounts to chassis in multiple locations

Strong and functional tube frame mimics full-size off-road racers

Detailed interior cabin with driver figures

Replica brake calipers and discs with integrated 17mm wheel hubs

Two fully-functional spare tires and functional spare driveshaft

Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools

Realistic side plates mount to tube frame

Chassis

Composite inverted tub design

Makes maintenance easier

Lowers center of gravity (CG) for improved handling

Allows easy access to components

Tough skid plates protect critical components

Fully integrated tube frame for scale appearance and added rigidity

Reinforced bumpers to absorb impacts

ESC battery plugs hard mounted to chassis

Innovative Battery Compartment

Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries

Opens from underneath without removing body

Fixed oversized battery strap locks batteries securely into place

Separate skid plate to protect batteries

Suspension

Provides scale looks and authentic off-road driving dynamics

Tough independent double-wishbone front suspension with captured rod ends

Triangulated 4-link rear suspension with solid rear axle (patent pending)

Tough composite trailing arms

Steel upper links with 3 optional positions for suspension tuning

Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars

Realistic and functional front and rear sway bars

Detailed functional limit straps on rear axle

Steering

Chassis mounted #2075X metal-gear servo

Dual bellcrank design with bearings and integrated servo saver

Solid non-adjustable steering links for rugged durability

Drivetrain

Steel CVDs (front) with 6mm stub axles

Steel straight axle (rear)

Oil-filled limited slip front differential

Locked steel spool (rear)

Heavy-duty splined front driveshaft

Fixed-length steel rear driveshaft

Transmission

All-steel gear direct drive transmission

Torque-Biasing Center Drive™

Removes as a single piece for easy maintenance

Fixed-pin gear mesh system

Wheels and Tires

Replica BFGoodrich® KR3 off-road tires

Beadlock-style 17mm dual-diameter wheels

Sealed Ball Bearings

Hex Hardware with Rust-Resistant Black Oxide Coating

High-Voltage LED Lights

Dual straight LED bumper-mounted LED light bars (52 LEDs each)

Curved roof light bar (52 LEDs)

Multifunction red and amber brake light/class light bar

High-voltage 8-channel power amplifier for intense, brilliant LED lighting

Regulated output for stable lighting performance

(no flickering or dimming as the battery voltage changes)

Specifications:

Length: 27.32 inches (694mm)

Front Track: 13.57 inches (345mm)

Rear Track: 13.57 inches (345mm)

Ground Clearance: 2.27 inches (58mm)

Weight: 13.4lb (6.1kg)

Height: 10.29 inches (261mm)

Wheelbase: 16.53 inches (420mm)

Front Shock Length: 5.28 inches (134mm)

Front Threaded Shock Length: 5.28 inches (134mm)

Rear Shock Length: 6.3 inches (160mm)

Rear Threaded Shock Length: 5.55 inches (139mm)

Tires (pre-glued): 134mm x 57mm BFGoodrich® KR3 replicas

Wheels: dual diameter 40mm x 56/81mm

Speed Control: Velineon® VXL-6s

Motor (electric): 2200kV

Includes:

Unlimited Desert Racer with VXL-6s ESC and 2200kV motor

Quick Start Guide

TQi™ 2.4GHz radio system

High quality maintenance tools

LED Lighting System

Needed to Complete:

Single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries with Traxxas iD connector

Traxxas EZ-Peak Live charger

(4) AA alkaline batteries for the transmitter
